Evinrude Outboard E90WDEXINM 1.29 L, 79.0 ci 12:27 / 0.444 O 25″ White Manual Tilt, Steel Steering Arm, Commercial Model
Original price was: R489.00.R289.00Current price is: R289.00.
10 in stock
Evinrude Outboard Service Manual 2012 40-50-60-65-75-90Hp

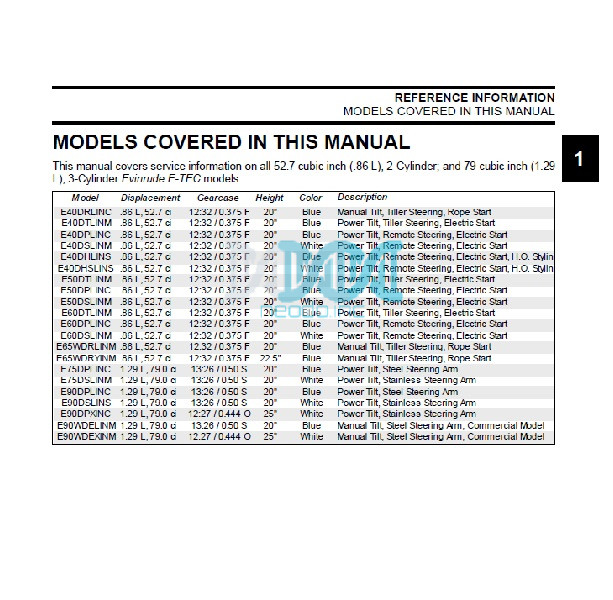

This manual covers service information on all 52.7 cubic inch (.86 L), 2-Cylinder; and 79 cubic inch (1.29
L), 3-Cylinder Evinrude Outboard E-TEC models.
E40DRLINC .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Manual Tilt, Tiller Steering, Rope Start
E40DTLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Tiller Steering, Electric Start
E40DPLINC .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Remote Steering, Electric Start
E40DSLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ White Power Tilt, Remote Steering, Electric Start
E40DHLINS .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Remote Steering, Electric Start, H.O. Styling
E40DHSLINS .86 L, 52.7 ci 12:32 / 0.375 F 20″ White Power Tilt, Remote Steering, Electric Start, H.O. Styling
E50DTLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Tiller Steering, Electric Start
E50DPLINC .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Remote Steering, Electric Start
E50DSLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ White Power Tilt, Remote Steering, Electric Start
E60DTLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Tiller Steering, Electric Start
E60DPLINC .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Power Tilt, Remote Steering, Electric Start
E60DSLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ White Power Tilt, Remote Steering, Electric Start
E65WDRLINM .86 L, 52.7 ci 12:32 / 0.375 F 20″ Blue Manual Tilt, Tiller Steering, Rope Start
E65WDRYINM .86 L, 52.7 ci 12:32 / 0.375 F 22.5″ Blue Manual Tilt, Tiller Steering, Rope Start
E75DPLINC 1.29 L, 79.0 ci 13:26 / 0.50 S 20″ Blue Power Tilt, Steel Steering Arm
E75DSLINM 1.29 L, 79.0 ci 13:26 / 0.50 S 20″ White Power Tilt, Stainless Steering Arm
E90DPLINC 1.29 L, 79.0 ci 13:26 / 0.50 S 20″ Blue Power Tilt, Steel Steering Arm
E90DSLINS 1.29 L, 79.0 ci 13:26 / 0.50 S 20″ White Power Tilt, Stainless Steering Arm
E90DPXINC 1.29 L, 79.0 ci 12:27 / 0.444 O 25″ White Power Tilt, Stainless Steering Arm
E90WDELINM 1.29 L, 79.0 ci 13:26 / 0.50 S 20″ Blue Manual Tilt, Steel Steering Arm, Commercial Model
E90WDEXINM 1.29 L, 79.0 ci 12:27 / 0.444 O 25″ White Manual Tilt, Steel Steering Arm, Commercial Model

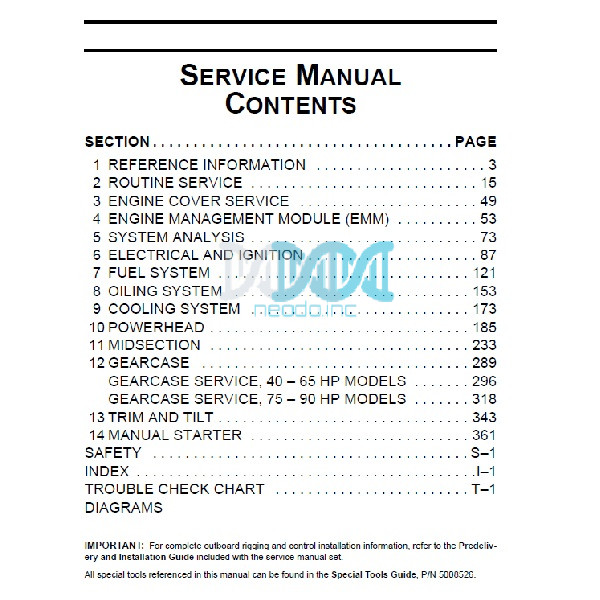

CONTENTS
SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
1 REFERENCE INFORMATION . . . . . . . . . . . . . . . . . . . . . 3
2 ROUTINE SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3 ENGINE COVER SERVICE . . . . . . . . . . . . . . . . . . . . . . 49
4 ENGINE MANAGEMENT MODULE (EMM) . . . . . . . . . . 53
5 SYSTEM ANALYSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6 ELECTRICAL AND IGNITION . . . . . . . . . . . . . . . . . . . . . 87
7 FUEL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
8 OILING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
9 COOLING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
10 POWERHEAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
11 MIDSECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
12 GEARCASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
GEARCASE SERVICE, 40 – 65 HP MODELS . . . . . . . 296
GEARCASE SERVICE, 75 – 90 HP MODELS . . . . . . . 318
13 TRIM AND TILT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
14 MANUAL STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S–1
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I–1
TROUBLE CHECK CHART . . . . . . . . . . . . . . . . . . . . . . . . T–1
DIAGRAMS
The Product Is A Downloadable Pdf File. Once Payment Has Bee
The File link Will Be Sent
The Book Is A E-book And Not A Hardcopy Booked That Is Shipped.
Product Type : New
Terms & Conditions Apply To All Orders As Per Our Company Policy
| Brand |
Evinrude |
|---|
Packages are generally dispatched on the same day provided that payment is received by 10 am. This is due to the collection time table of our courier partners for collections from our warehouse.
Our preferred courier service is with Bobgo
A highly cost-effective, service suitable for large consolidated consignments. Delivery within 24 to 72 hours, depending on final destination. Major City Centers delivery normally happens within 24 hours.
Outlying and rural areas the shipping will be 3 to 4 working days
Your order will be delivered to the address you indicated when your order was placed.
